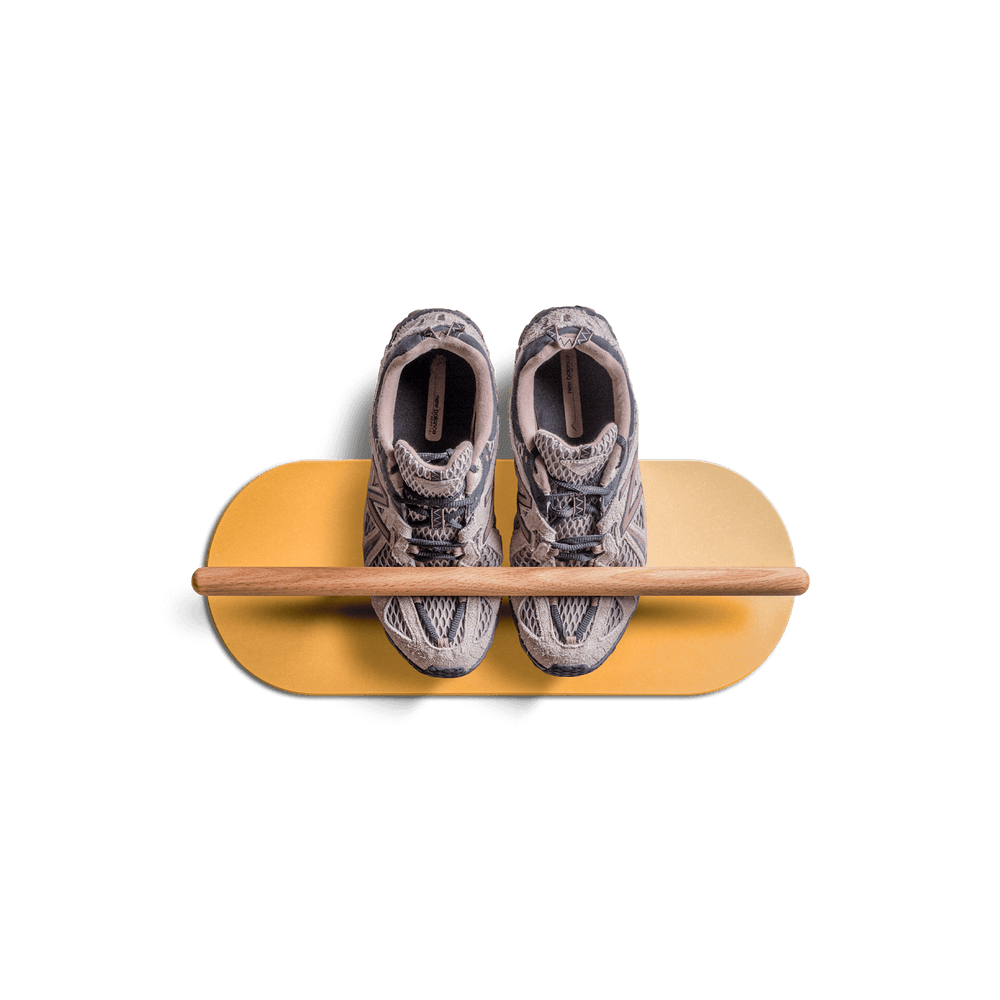

Grounded

Step by step

1. 1

   Measure and mark

   Place the back plate against the wall at the desired height. Use a spirit level to ensure it is straight. Mark the mounting holes on the wall through the holes in the back plate.
2. 2

   Drill holes

   • For masonry or concrete walls: Drill holes at the marked positions using a 10 mm drill bit. Drill to a depth of 70 mm. Ensure you drill straight (perpendicular to the wall).
   • For plasterboard walls: Drill through the board with the same bit and use the wall plugs from the box.
   • For wooden walls: Do not use the 10 mm bit. Instead, pre-drill 6 mm pilot holes for the mounting screws. Wall plugs are not needed for wood.
3. 3

   Insert wall plugs

   Insert the provided 10 mm wall plugs into the drilled holes (not in a wooden wall).
4. 4

   Position back plate

   Align the back plate with the holes in the wall.
5. 5

   Install mounting screws

   Place a brass washer onto each T25 mounting screw. Using the T25 bit, drive the mounting screws through the back plate and into the wall (or wall plugs). Tighten until the washers sit flush against the plate.
6. 6

   Attach brass covers

   Slide the brass covers over the exposed heads of the mounting screws.
7. 7

   Mount the shoe rack

   Place the Grounded shoe rack onto the mounting screws. Secure the rack by tightening the pre-inserted set screws using the 3 mm hex key.
